전기용 경 알루미늄연선 (HSAL)

용도

가공 배전선, 가공 급전선 및 모선에 사용

적용규격

KS C 3112

구조

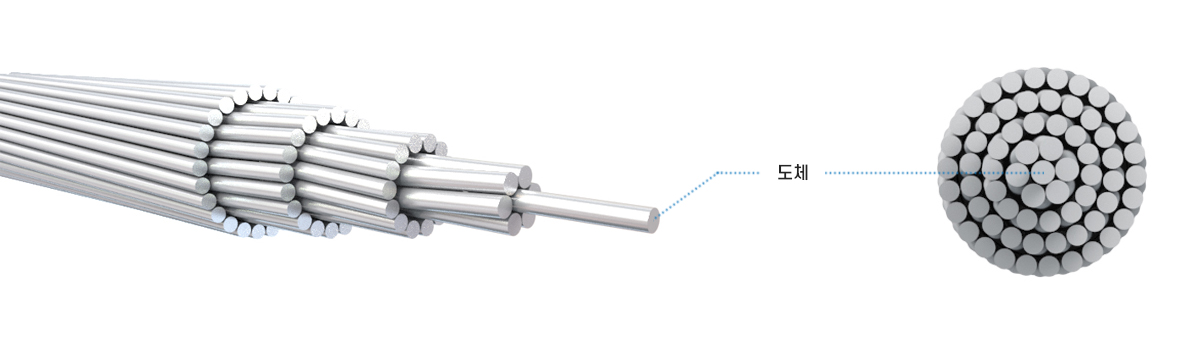

도체 : 경알루미늄 연선

공칭단면적	소선수/소선지름	계산단면적	완성외경	중량	최소 인장하중	최대 도체저항	Hard-drawn Copper Equiv. Area	길이
㎟	No./㎜	㎟	㎜	㎏/㎞	㎏	Ω/㎞	㎟	m
1,260	92/4.2	1,260	46.2	3,499	18,350	0.0230	792	600
1,000	127/3.2	1,021	41.6	2,840	15,200	0.0285	642	800
980	91/3.7	978.3	40.7	2,716	14,500	0.0297	615	600
880	91/3.5	875.5	38.5	2,426	13,020	0.0331	551	700
850	61/4.2	844.9	37.8	2,334	12,300	0.0342	531	1,300
770	61/4.0	766.8	36.0	2,118	11,140	0.0377	482	1,000
725	91/4.2	731.8	35.2	2,027	10,890	0.0396	460	800
660	61/3.7	655.8	33.3	1,812	9,720	0.0441	412	1,300
590	61/3.5	586.9	31.5	1,621	8,730	0.0493	369	1,350
510	37/4.2	512.5	29.4	1,413	7,460	0.0563	322	1,300
500	61/3.2	490.6	28.8	1,355	7,300	0.0589	309	800
460	37/4.0	465.1	28.0	1,282	6,760	0.0612	292	1,000
400	37/3.7	397.8	25.9	1,097	5,890	0.0726	250	1,300
325	61/2.6	323.8	23.4	894.2	5,020	0.0892	204	1,200
300	37/3.2	297.6	22.4	820.1	4,430	0.0969	187	1,500
250	37/2.9	244.4	20.3	673.6	3,700	0.118	154	2,000
240	19/4.0	238.8	20.0	654.5	3,490	0.120	150	1,300
200	37/2.6	196.4	18.2	541.3	3,030	0.147	124	2,400
200	19/3.7	204.3	18.5	559.8	3,030	0.140	128	1,300
150	19/3.2	152.8	16.0	418.7	2,270	0.188	96	1,500
125	19/2.9	125.5	14.5	343.9	1,900	0.229	79	2,000
100	19/2.6	100.9	13.0	276.4	1,560	0.284	63	2,400
95	7/4.2	96.65	12.6	264.9	1,410	0.295	61	1,000
75	7/3.7	75.25	11.1	205.6	1,120	0.380	47	1,900
55	7/3.2	56.29	9.6	153.8	838	0.507	35	1,000
45	7/2.9	46.24	8.7	126.3	699	0.619	29	1,000
38	7/2.6	37.16	7.8	101.5	576	0.769	23	1,800
30	7/2.3	29.06	6.9	79.40	469	0.984	18	1,800
22	7/2.0	21.99	6.0	60.09	369	1.30	14	2,000
