0.6/1kV XLPE insulated FR-PVC sheathed cable in tray (0.6/1kV TFR-CV)

Usage

  • This cable is designed for the purpose of using in power distribution line or control system under AC 0.6/1kV, having excellent electrical, physical and chemical and flame retardant properties

Applied specification

  • Electrical appliance safety standard, KWS-410

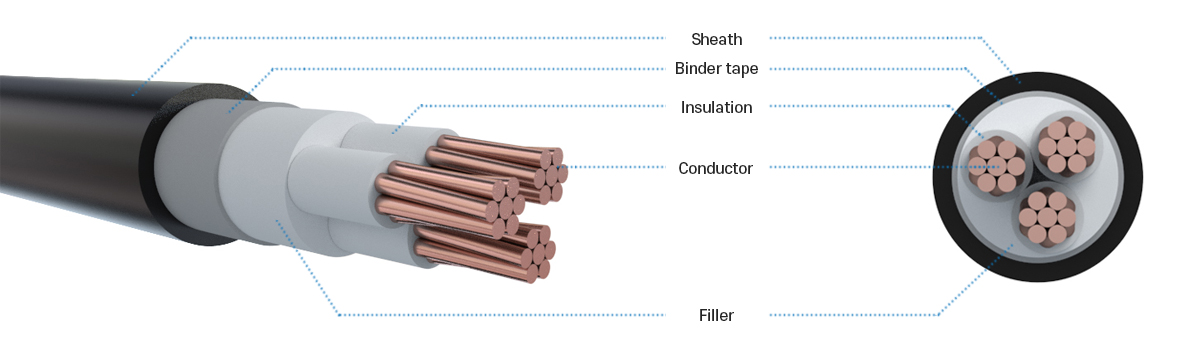

Structure

  • Conductor : Annealed copper wire (Concentric circular, Compact circular)
  • Insulation : XLPE/FR-XLPE
  • Core identification : Coluoring method (2 cores black, white / 3 cores black, white, red / 4 cores black, white, red, green)
  • Sheath : PVC/FR-PVC

Single Core

Conductor Insulation
Thickness		 Sheath
Thickness		 Approx.
Overall
Diameter		 Max.
Conductor
Resistance
at 20℃		 Test Voltage Approx.
Weight		 Standard
Length
Nominal
Sectional
Area		 Number &
Diameter of
Wire		 Outer
Diameter
㎟ No./㎜ ㎜ ㎜ ㎜ ㎜ Ω/㎞ V/5min ㎏/㎞ m
1.5 7/0.53 1.59 0.7 1.4 6.3 12.1 3,500 60 300
2.5 7/0.67 2.01 0.7 1.4 6.7 7.41 3,500 70 300
4 7/0.85 2.55 0.7 1.4 7.2 4.61 3,500 80 300
6 7/1.04 3.12 0.7 1.4 7.8 3.08 3,500 110 300
10 7/1.35 4.05 0.7 1.4 9.4 1.83 3,500 150 300
16 C.C. 4.7 0.7 1.4 10.0 1.15 3,500 215 300
25 C.C. 5.9 0.9 1.4 12.0 0.727 3,500 315 300
35 C.C. 6.9 0.9 1.4 13.0 0.524 3,500 415 300
50 C.C. 8.1 1.0 1.4 14.5 0.387 3,500 555 300
70 C.C. 9.8 1.1 1.4 16.0 0.268 3,500 780 300
95 C.C. 11.4 1.1 1.5 18.5 0.193 3,500 1,025 300
120 C.C. 12.9 1.2 1.5 20 0.153 3,500 1,270 300
150 C.C. 14.4 1.4 1.6 22 0.124 3,500 1,575 300
185 C.C. 15.9 1.6 1.6 24 0.0991 3,500 1,930 200
240 C.C. 18.3 1.7 1.7 27 0.0754 3,500 2,470 200
300 C.C. 20.5 1.8 1.8 30 0.0601 3,500 3,100 200
400 C.C. 23.2 2.0 1.9 34 0.0470 3,500 4,090 150
500 C.C. 26.4 2.2 2.0 37 0.0366 3,500 5,100 150
630 C.C. 30.2 2.4 2.2 42 0.0283 3,500 6,410 150

Note) C.C. : Compact round stranded conductor.

Two Cores

Conductor Insulation
Thickness		 Sheath
Thickness		 Approx.
Overall
Diameter		 Max.
Conductor
Resistance
at 20℃		 Test Voltage Approx.
Weight		 Standard
Length
Nominal
Sectional
Area		 Number &
Diameter of
Wire		 Outer
Diameter
㎟ No./㎜ ㎜ ㎜ ㎜ ㎜ Ω/㎞ V/5min ㎏/㎞ m
1.5 7/0.53 1.59 0.7 1.8 11.0 12.1 3,500 130 300
2.5 7/0.67 2.01 0.7 1.8 12.0 7.41 3,500 155 300
4 7/0.85 2.55 0.7 1.8 13.0 4.61 3,500 195 300
6 7/1.04 3.12 0.7 1.8 14.0 3.08 3,500 255 300
10 7/1.35 4.05 0.7 1.8 17.0 1.83 3,500 360 300
16 C.C. 4.7 0.7 1.8 18.5 1.15 3,500 490 300
25 C.C. 5.9 0.9 1.8 22 0.727 3,500 720 300
35 C.C. 6.9 0.9 1.8 24 0.524 3,500 960 300
50 C.C. 8.1 1.0 1.8 27 0.387 3,500 1,290 300
70 C.C. 9.8 1.1 1.9 31 0.268 3,500 1,750 300
95 C.C. 11.4 1.1 1.9 35 0.193 3,500 2,310 300
120 C.C. 12.9 1.2 2.0 38 0.153 3,500 2,880 300
150 C.C. 14.4 1.4 2.2 43 0.124 3,500 3,610 300
185 C.C. 15.9 1.6 2.3 47 0.0991 3,500 4,410 200
240 C.C. 18.3 1.7 2.5 53 0.0754 3,500 5,690 200
300 C.C. 20.5 1.8 2.6 58 0.0601 3,500 7,070 200

Three Cores

Conductor Insulation
Thickness		 Sheath
Thickness		 Approx.
Overall
Diameter		 Max.
Conductor
Resistance
at 20℃		 Test Voltage Approx.
Weight		 Standard
Length
Nominal
Sectional
Area		 Number &
Diameter of
Wire		 Outer
Diameter
㎟ No./㎜ ㎜ ㎜ ㎜ ㎜ Ω/㎞ V/5min ㎏/㎞ m
1.5 7/0.53 1.59 0.7 1.8 11.5 12.1 3,500 150 300
2.5 7/0.67 2.01 0.7 1.8 12.5 7.41 3,500 190 300
4 7/0.85 2.55 0.7 1.8 13.5 4.61 3,500 240 300
6 7/1.04 3.12 0.7 1.8 14.5 3.08 3,500 320 300
10 7/1.35 4.05 0.7 1.8 18.0 1.83 3,500 465 300
16 C.C. 4.7 0.7 1.8 19.5 1.15 3,500 650 300
25 C.C. 5.9 0.9 1.8 23 0.727 3,500 965 300
35 C.C. 6.9 0.9 1.8 25 0.524 3,500 1,290 300
50 C.C. 8.1 1.0 1.8 29 0.387 3,500 1,770 300
70 C.C. 9.8 1.1 1.9 33 0.268 3,500 2,440 300
95 C.C. 11.4 1.1 2.0 37 0.193 3,500 3,240 300
120 C.C. 12.9 1.2 2.1 41 0.153 3,500 4,050 300
150 C.C. 14.4 1.4 2.3 46 0.124 3,500 5,050 300
185 C.C. 15.9 1.6 2.4 50 0.0991 3,500 6,200 200
240 C.C. 18.3 1.7 2.6 57 0.0754 3,500 7,900 200
300 C.C. 20.5 1.8 2.7 62 0.0601 3,500 9,980 200

Four Cores

Conductor Insulation
Thickness		 Sheath
Thickness		 Approx.
Overall
Diameter		 Max.
Conductor
Resistance
at 20℃		 Test Voltage Approx.
Weight		 Standard
Length
Nominal
Sectional
Area		 Number &
Diameter of
Wire		 Outer
Diameter
㎟ No./㎜ ㎜ ㎜ ㎜ ㎜ Ω/㎞ V/5min ㎏/㎞ m
1.5 7/0.53 1.59 0.7 1.8 12.5 12.1 3,500 180 300
2.5 7/0.67 2.01 0.7 1.8 13.5 7.41 3,500 230 300
4 7/0.85 2.55 0.7 1.8 14.5 4.61 3,500 310 300
6 7/1.04 3.12 0.7 1.8 16.0 3.08 3,500 400 300
10 7/1.35 4.05 0.7 1.8 20 1.83 3,500 585 300
16 C.C. 4.7 0.7 1.8 22 1.15 3,500 820 300
25 C.C. 5.9 0.9 1.8 26 0.727 3,500 1,245 300
35 C.C. 6.9 0.9 1.8 28 0.524 3,500 1,660 300
50 C.C. 8.1 1.0 1.9 32 0.387 3,500 2,220 300
70 C.C. 9.8 1.1 2.0 36 0.268 3,500 3,110 300
95 C.C. 11.4 1.1 2.1 42 0.193 3,500 4,210 300
120 C.C. 12.9 1.2 2.3 46 0.153 3,500 5,310 300
150 C.C. 14.4 1.4 2.4 51 0.124 3,500 6,330 300
185 C.C. 15.9 1.6 2.6 56 0.0991 3,500 7,850 200
240 C.C. 18.3 1.7 2.8 63 0.0754 3,500 10,040 200
300 C.C. 20.5 1.8 3.0 70 0.0601 3,500 12,620 200
